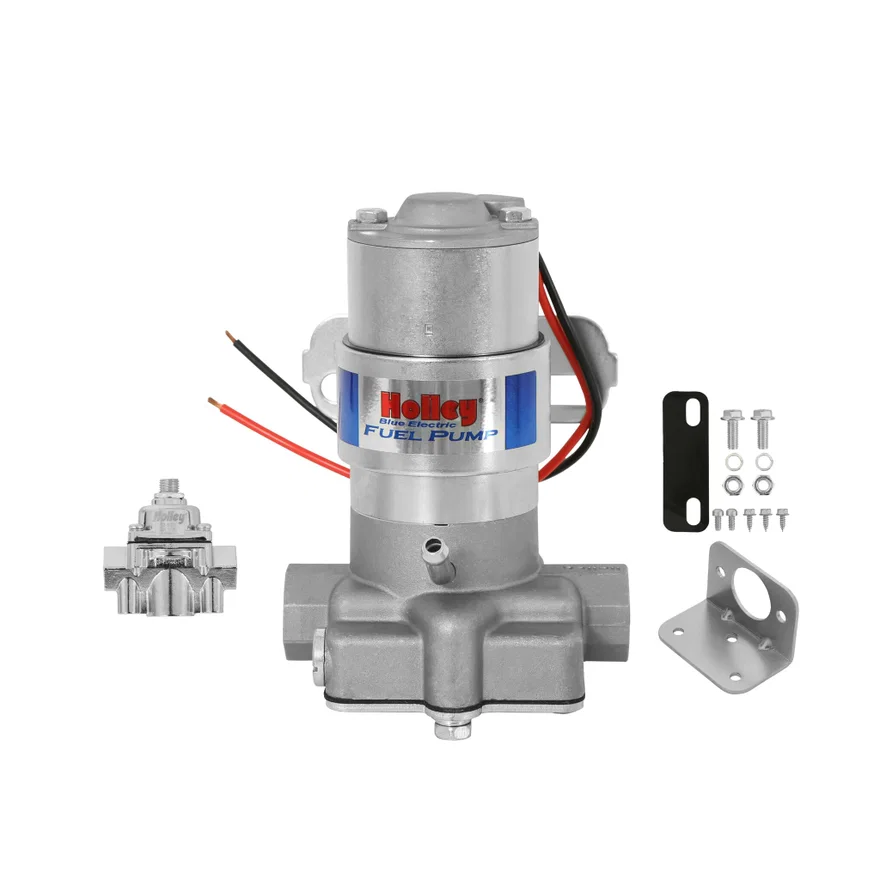

Holley 110 GPH Blue® Electric Fuel Pump With Regulator
Part # 712-802-1SKU HOL712-802-1
Universal fit
| Brand | Holley |
|---|---|
| Part type | Electric Fuel Pump |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Color | Silver |
| Emission Code | 5 |
| Finish | Zinc |
| Free Flow GPH | 110 |
| Fuel Sending Unit Included | No |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Mounting Hardware Included | No |
| part type | Electric Fuel Pump |
| Strainer Included | No |
| Terminal Quantity | 2 |
| Universal Or Specific Fit | Universal |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Wiring Harness Included | No |
| UPC / GTIN | 00090127484326 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Motor draws only 3 amps current
- 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed to be used on aircraft of any type.
- Distinctive Holley Blue® logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- maximum pressure is 14 psi
- Includes P/N 12-803 fuel pressure regulator
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Description
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
