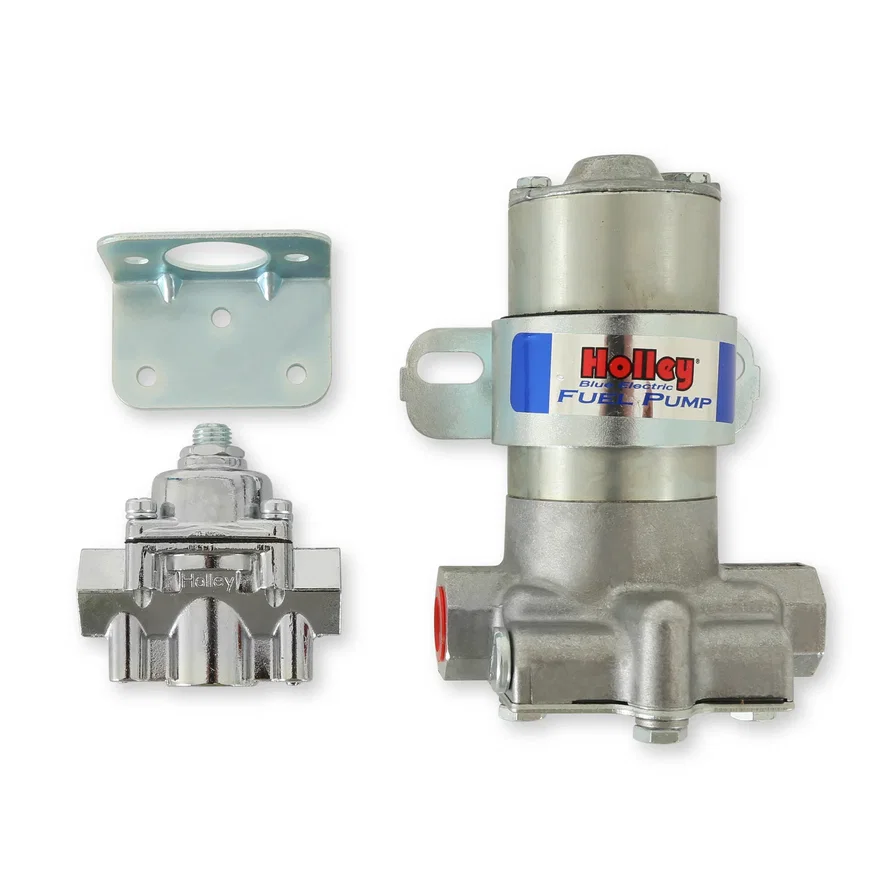

Holley 110 GPH Blue® Electric Fuel Pump With Regulator
Part # 12-802-1SKU HOL12-802-1
Universal fit
| Brand | Holley |
|---|---|
| Part type | Electric Fuel Pump |
| Application | Automotive |
| Average Flow Rating | 110 gph |
| Bracket Color | Silver |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Color | Silver |
| Emission Code | 5 |
| Finish | Zinc |
| Free Flow GPH | 110 |
| Free Flow LPH | 416 |
| Fuel Delivery Type | Carburetor |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 3/8" in |
| Inlet Type | NPT |
| Internal Or External | External |
| Material | Aluminum |
| Maximum Amperage Draw | 3 |
| Maximum Flow Rating | 110 |
| Maximum Pressure | 14 PSI |
| Motor Finish | Silver |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/8" in |
| Outlet Quantity | 1 |
| Outlet Type | NPT |
| part type | Electric Fuel Pump |
| UPC / GTIN | 00090127484296 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Motor draws only 3 amps current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed for use on aircraft of any type
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- Maximum pressure is 14 psi
- Includes P/N 12-803 fuel pressure regulator
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
Description
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.
