| Brand | Holley |
|---|---|
| Part type | Electric Fuel Pump |
| Application | Automotive |
| Average Flow Rating | 105 gph |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Color | Silver |
| Emission Code | 5 |
| Finish | Anodized |
| Forced Induction HP@43PSI | 700 |
| Forced Induction HP@60PSI | 600 |
| Forced Induction HP@8PSI | 800 |
| Free Flow GPH | 105 |
| Free Flow LPH | 397 |
| Fuel Delivery Type | Fuel Injection | Carburetor |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| GPH@43PSI | 76 |
| GPH@60PSI | 70 |
| GPH@8PSI | 100 |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 8 |
| Inlet Type | ORB |
| Internal Or External | Internal External |
| LPH@43PSI | 287 |
| LPH@60PSI | 265 |
| LPH@8PSI | 363 |
| Material | Aluminum |
| Maximum Amperage Draw | 8.6 A |
| Maximum Flow Rating | 105 |
| UPC / GTIN | 00090127670538 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
- Billet aluminum construction for durability & good looks
- -8 an o-ring inlet/outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
- Proven durability beyond 3,000 hours in gasoline or diesel fuels
- Weighs only 3.1 lbs.
- Current draw at 43 psi and 13.5 vdc is 8.6 amps
- Not designed for use on aircraft of any type.
Description

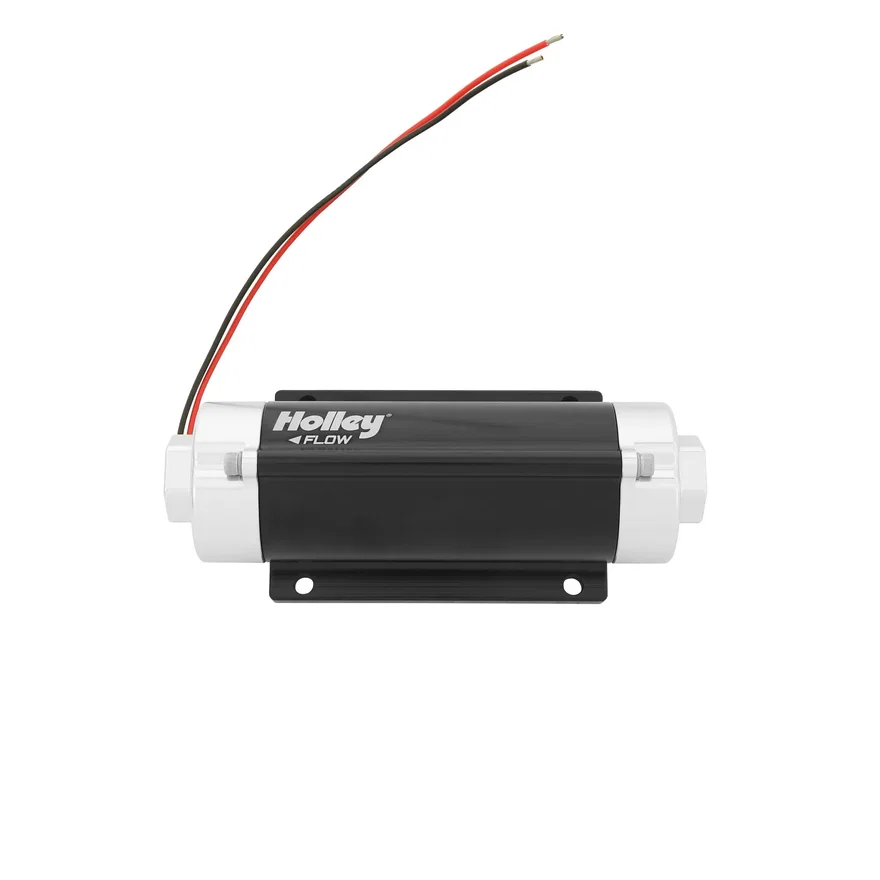

Holley's HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck, or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost-effective, attractive package. HP™ fuel pumps are Race gas, E-85, and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.
