Holley 100 GPH Universal In-line Electric Fuel Pump
Part # 12-170SKU HOL12-170
Universal fit
| Brand | Holley |
|---|---|
| Part type | Electric Fuel Pump |
| Application | Automotive |
| Average Flow Rating | 105 gph |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Color | Silver |
| Emission Code | 5 |
| Finish | Anodized |
| Forced Induction HP@43PSI | 750 |
| Forced Induction HP@60PSI | 700 |
| Forced Induction HP@8PSI | 800 |
| Free Flow GPH | 105 |
| Free Flow LPH | 400 |
| Fuel Delivery Type | Fuel Injection | Carburetor |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| Fuel Type | Gasoline / Diesel / E85 |
| Gasket Or Seal Included | No |
| GPH@43PSI | 96 |
| GPH@60PSI | 91 |
| GPH@8PSI | 105 |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 8 |
| Inlet Type | ORB |
| Internal Or External | External |
| LPH@43PSI | 364.7 without check valve |
| LPH@60PSI | 343.6 without check valve |
| LPH@8PSI | 390 |
| Material | Aluminum |
| Maximum Flow Rating | 100 |
| Maximum Pressure | 60 PSI |
| UPC / GTIN | 00090127060681 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
- Designed for high output naturally aspirated and forced induction EFI and carbureted vehicles. The roller vane design pump provides fuel pressure and volume to support up to 900 EFI N/A or 700 EFI Boosted horsepower.
- The 12-170 pump is compatible with Pwm
- Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
- The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting)

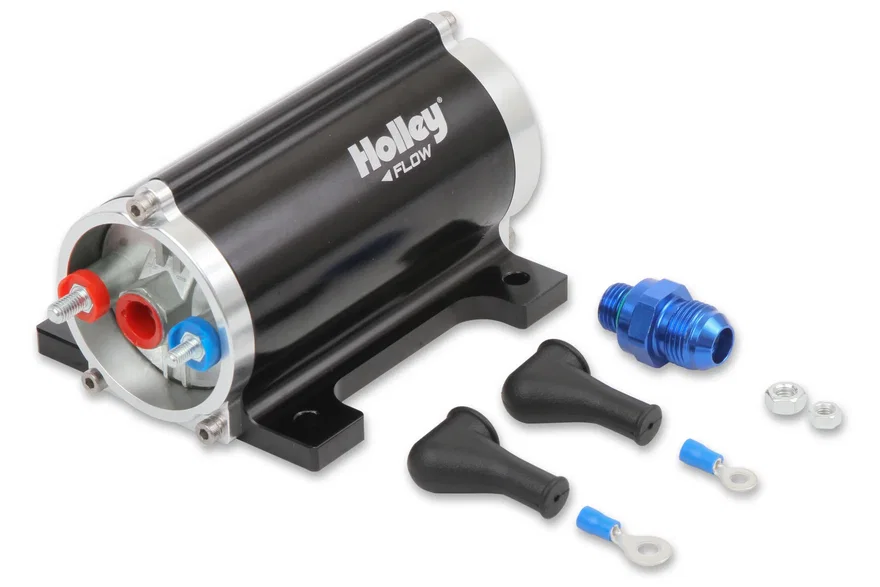

- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
Description
Holley's 100 GPH (gallons per hour) fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles It utilizes -8 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps.
