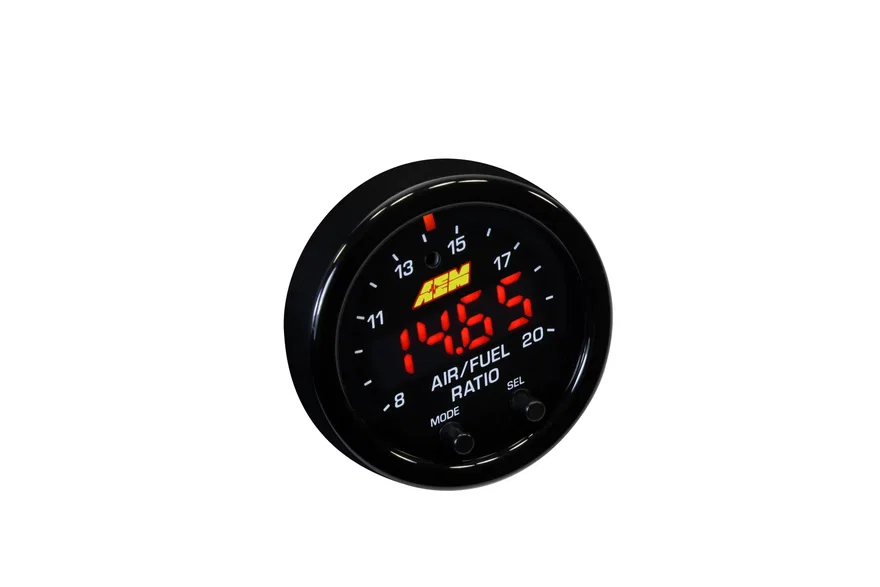

AEM Electronics X-Series OBDII Wideband AFR Gauge Kit
Part # 30-0334SKU AEL30-0334
Universal fit
| Brand | AEM Electronics |
|---|---|
| Part type | Air / Fuel Ratio Gauge |
| Body Color | Black |
| Body Diameter | 52 |
| Brand | AEM |
| Category | Gauges and Gauge Accessories |
| Emission Code | 5 |
| Face Color | Black |
| Face Diameter | 52 |
| Face Shape | Round |
| Gauge Diameter | 2 1/16 |
| Grade Type | Performance |
| Illuminated | No |
| Mounting Hardware Included | Yes |
| part type | Air / Fuel Ratio Gauge |
| Product Type | Wideband Gauge Kit |
| Sub Category | Instrument Panel |
| Type | Performance |
| Universal Or Specific Fit | Universal |
| Warranty | 12 Months - Excluding Bosch O2 Sensor |
| Wire Gauge Measurement | 22 |
| Wiring Harness Length | 96 |
| UPC / GTIN | 00840879025854 |
| Warranty | 12 Months - Excluding Bosch O2 Sensor warranty |
- X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
- Patented X-Digital wideband technology (Patent 9,575,030)
- OBD-II Output; CAN based compatible with 2008 or newer vehicles
- Includes Bosch 4.9LSU wideband UEGO sensor
- Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
- Compatible with vehicle/system voltages up to 16V
- 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
- Can display AFR values in hundredths of %
- 52mm gauge diameter and slim 0.825" gauge depth
- Gauge cup depth only .200" deep
- Auto dimming feature
- User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
- Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
- Locking connectors
Description
AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune.
