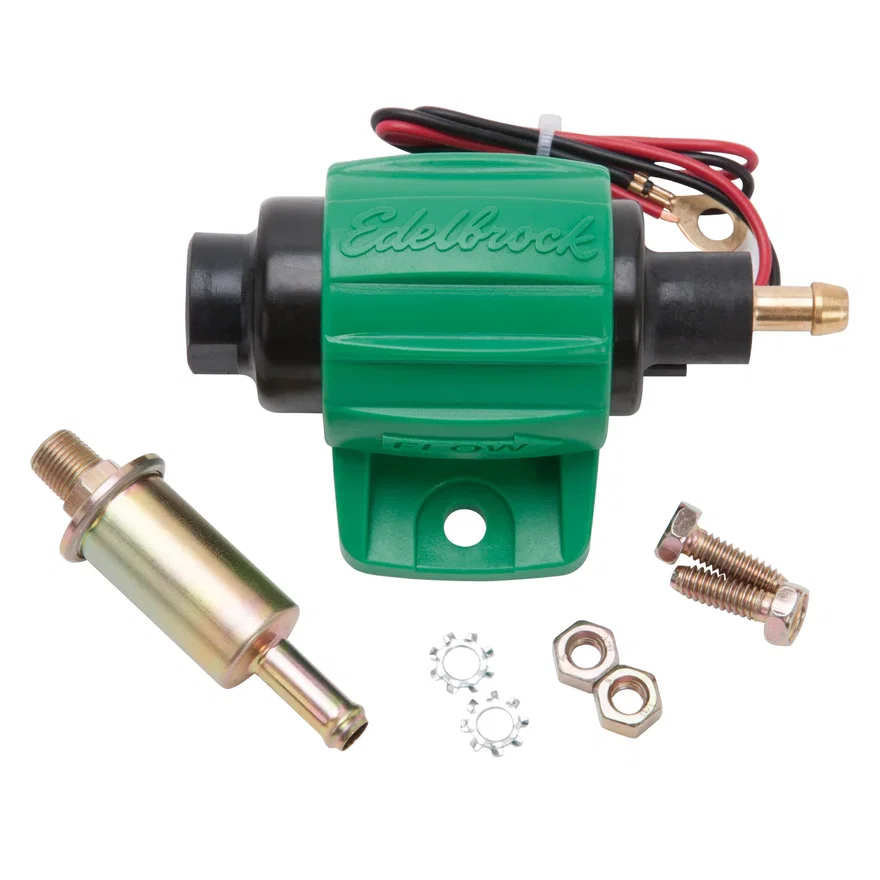

Edelbrock Universal Micro Electric Fuel Pump - 38 GPH / 144 LPH (Diesel)
Part # 17302SKU EDE17302
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Electric Fuel Pump |
| Compatible Fuel Type | Diesel |
| Fuel Pump Inlet Type | Hose Barb |
| Fuel Sending Unit Included | No |
| Fuel Type | Diesel |
| Gasket Or Seal Included | No |
| In Tank or External | External |
| Inlet Type | Hose Barb |
| Internal Or External | External |
| Maximum Flow Rating | 144 LPH/38 gph |
| Maximum Pressure | 7 PSI |
| Minimum Pressure | 4 PSI |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Outside Diameter | 0.312 in |
| Outlet Quantity | 1 |
| Outlet Type | Hose Barb |
| Pump Design | In-line Electric Fuel Pump |
| Pump Type | Electric |
| Regulator Included | No |
| Seal And Lock Ring Included | No |
| Strainer Included | No |
| Terminal Type | Lead Wire |
| Universal Or Specific Fit | Universal |
| Wiring Harness Included | No |
| UPC / GTIN | 00085347173020 |
Description
Edelbrock part #17302 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 4-7 PSI, 38 GPH for most carbureted applications and is compatible with Diesel only. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet.
