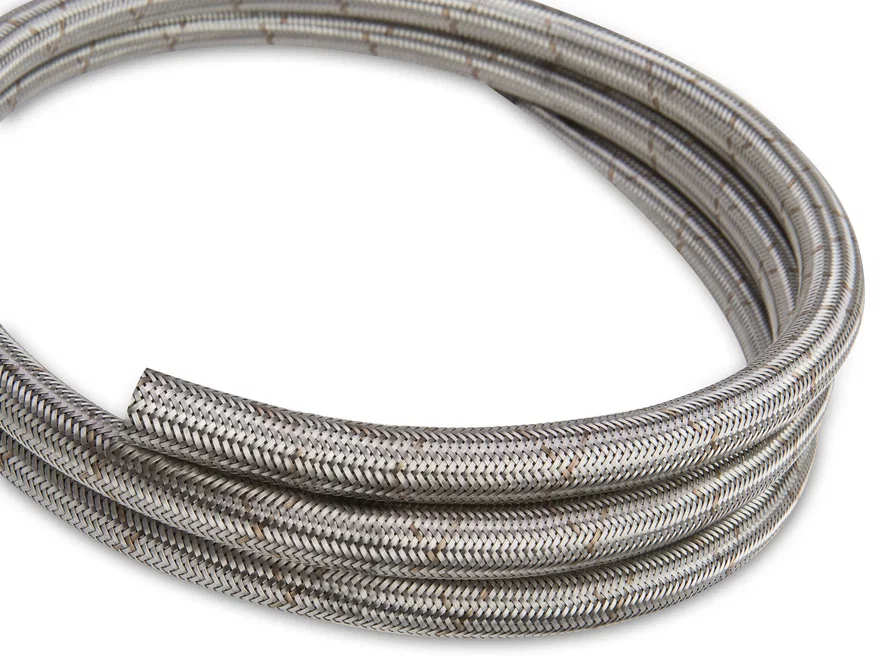

Earl's Performance Ultra Flex Hose Size -10 SS Braid - Hose Sold By the Foot up to 25'

Part # 660010ERLSKU EAR660010ERL

Universal fit

Specifications
BrandEarl's Performance
Part typeFuel Hose
BrandEarl's
CategoryAir and Fuel Delivery
Compatible Hose EndsUltra-Flex
Crimping Die22MM - D10022BERL
Emission Code5
Final Crimp O.D. Range.925"-.937"
Fluid TypeE85
Fluid Type Rating - Automatic Transmission Fluid5 out of 5 Rating
Fluid Type Rating - Bio-Fuels5 out of 5 Rating
Fluid Type Rating - Coolant5 out of 5 Rating
Fluid Type Rating - Diesel5 out of 5 Rating
Fluid Type Rating - E855 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol5 out of 5 Rating
Fluid Type Rating - Oil5 out of 5 Rating
Fluid Type Rating - Pump Gas5 out of 5 Rating
Fluid Type Rating - Race Gas5 out of 5 Rating
Fluid Type Rating - Vacuum5 out of 5 Rating
Hose FamilyUltra-Flex
Hose LengthBULK
Hose Outer MaterialStainless Steel
Hose Size10 AN
Inside Diameter.658"
Max Vacuum29 in Hg
Max Working PSI955 PSI
Maximum Continuous Length25 Feet
Min. Bend Radius1.772"
Outside Diameter.819"
part typeFuel Hose
Product TypeHose
Sub CategoryFuel Storage
UPC / GTIN00090127636022
WarrantyManufacturer’s Limited 90 Day Warranty
  • Sold per foot

Description

We have taken the same inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.)
