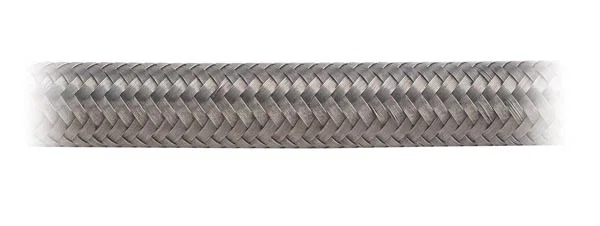

Earl's Performance Perform-O-Flex Hose - Size 24 - Sold By The Foot up to 30'

Part # 400240ERLSKU EAR400240ERL

Universal fit

Specifications
BrandEarl's Performance
Part typeFuel Hose
BrandEarl's
CategoryAir and Fuel Delivery
Compatible Hose EndsEcon-O-Fit
Emission Code5
Fluid TypeAutomatic Transmission Fluid
Fluid Type Rating - Automatic Transmission Fluid5 out of 5 Rating
Fluid Type Rating - Coolant5 out of 5 Rating
Fluid Type Rating - Diesel2 out of 5 Rating
Fluid Type Rating - E852 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol1 out of 5 Rating
Fluid Type Rating - Oil5 out of 5 Rating
Fluid Type Rating - Pump Gas2 out of 5 Rating
Fluid Type Rating - Race Gas3 out of 5 Rating
Fluid Type Rating - Vacuum5 out of 5 Rating
Hose FamilyPerform-O-Flex
Hose LengthBULK
Hose Outer MaterialStainless Steel
Hose Size24 AN
Inside Diameter1.375"
Max Working PSI250 PSI
Maximum Continuous Length30 Feet
Min. Bend Radius9.0"
Outside Diameter1.703"
part typeFuel Hose
Product TypeHose
Sub CategoryFuel Storage
Submersible in FuelNo
Temperature Range-40° to 350° F
UPC / GTIN00021432490146
WarrantyManufacturer’s Limited 90 Day Warranty
  • Stainless Steel Inner Braid

Description

Earl's PERFORM-O-FLEX stainless braid-protected synthetic rubber hose is the premium quality racing hose depended on by the top racing teams of every professional sanctioning body in the world. PERFORM-O-FLEX features an inner liner of synthetic rubber. A partial coverage protective sheath of stainless steel braid is embedded in the liner during manufacturing. The reinforced hose liner is then bonded to a full-coverage outer protective sheath of high tensile stainless steel wire braid. Tougher than this, hose doesn't get. Yet Perform-O-Flex, with its inner liner, remains flexible at temperatures between -40 and +350 degrees F. Racing Greats have depended on PERFORM-O-FLEX hose and SWIVEL-SEAL hose ends since 1972. Perform-O-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Perform-O-Flex hose. The use of other manufacturer's hose ends is not recommended. PSI rating is determined by many factors including hose end in use and assembly method.
