| Brand | Holley |
|---|---|
| Part type | Fuel Pump Module Assembly |
| Application | Universal |
| Average Current Draw | 16.9 A |
| Average Flow Rating | 450 L/h |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Flange Style | 12 Bolt |
| Free Flow GPH | 118 |
| Free Flow LPH | 450 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Cork |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Size | 8 AN |
| Inlet Type | 8 AN ORB |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Max PSI | 87 |
| Maximum Pressure | 60 PSI |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Size | 10 AN |
| UPC / GTIN | 00090127029657 |
| Warranty | Manufacturer's Limited 90 Day Warranty |

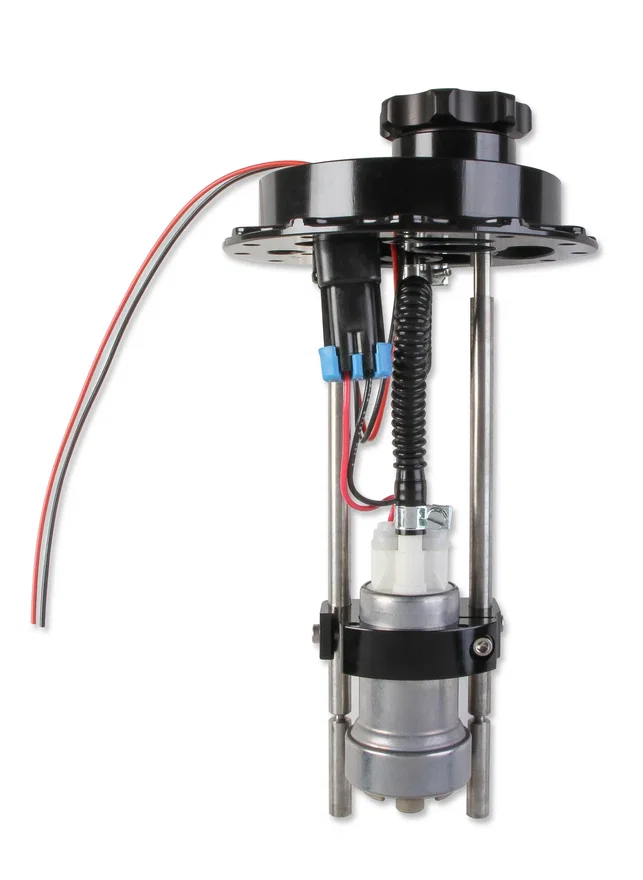

- Update your fuel cell to EFI the easy way!
- Designed to drop right into your existing 12 bolt flange fuel cell
- Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap
- Modules are available with 255 or 450 LPH fuel pumps in single pump configurations
- The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
- Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
