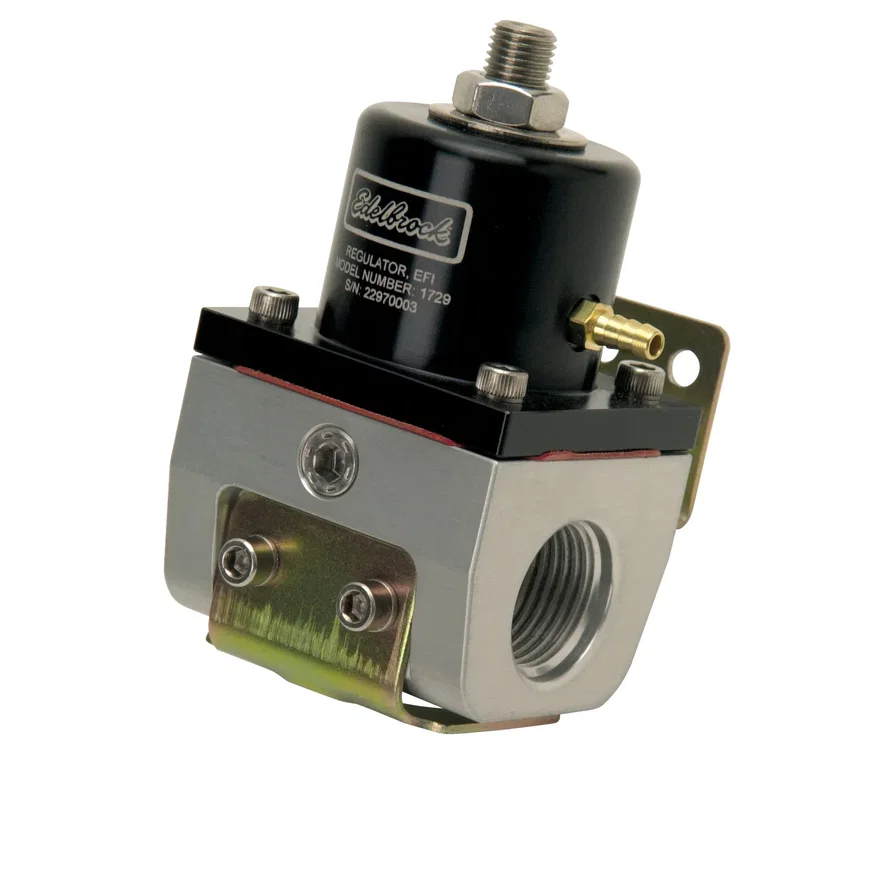

Edelbrock EFI Fuel Pressure Regulator -10 AN (180 GPH) in Black/Clear Finish
Part # 1729SKU EDE1729
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Fuel Injection Pressure Regulator |
| Bypass Size | -6 an |
| End 1 Attachment Type | Threaded |
| End 1 Connector Quantity | 2 |
| End 1 Diameter | -10 an |
| End 1 Gender | Female |
| End 2 Attachment Type | Threaded |
| End 2 Connector Quantity | 1 |
| End 2 Gender | Female |
| End 2 Size | -10 an |
| Flow Rate | 80 gph |
| Fuel Type | Gas, Ethanol, Methanol, E85 |
| Maximum Pressure | 35-90 PSI |
| Quantity | Sold Individually |
| Type | Return Style |
| UPC / GTIN | 00085347017294 |
Description
The Edelbrock 1729 fuel pressure regulator is machined from aircraft quality aluminum for those who demand the best. Edelbrock EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection. Regulator part #1729 has a black and clear finish with -10 inlet and outlet ports with -6 return.
