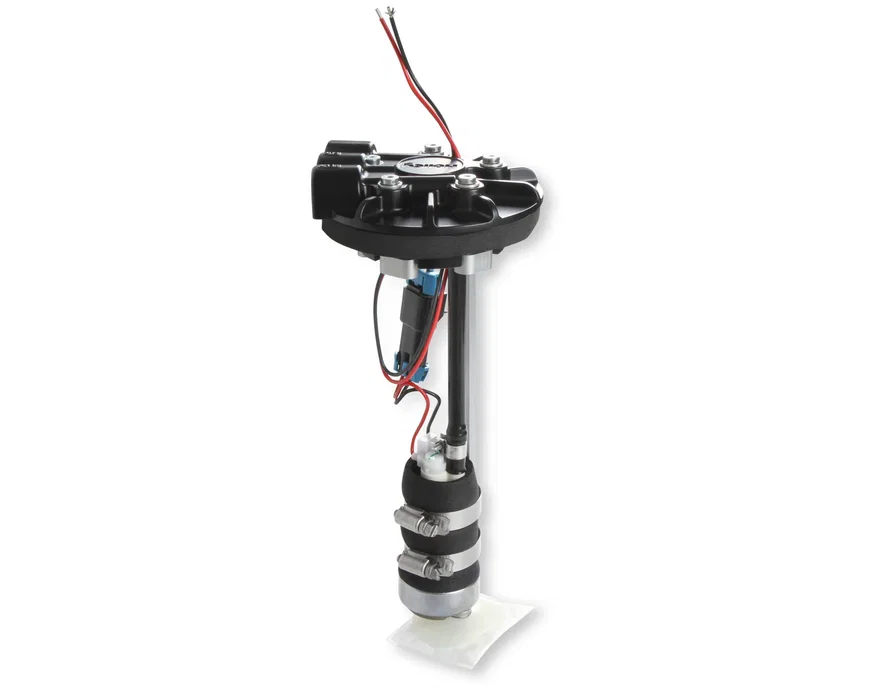

Holley Diecast In-Tank RetroFit Fuel Module Returnless System
Part # 12-172SKU HOL12-172
Universal fit
| Brand | Holley |
|---|---|
| Part type | Fuel Pump Module Assembly |
| Application | Universal |
| Average Current Draw | 16.9 A |
| Average Flow Rating | 450 L/h |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Connector Color | Black |
| Connector Quantity | 1 |
| Emission Code | 5 |
| Finish | Black |
| Free Flow LPH | 450 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | E85 |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Foam |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Fitting Thread Size | 1/4 in |
| Inlet Quantity | None |
| Inlet Type | NPT |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Material | Die Cast Aluminum |
| Maximum Pressure | 60 PSI |
| Minimum Fuel Tank Depth | 7 inches |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| UPC / GTIN | 00090127107386 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
- The easiest way to convert your vehicle to an in-tank, EFI fuel system
- Installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
- Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
- Optional roll over valve available
- Two different fuel pumps are available to match your requirements - 255LPH or 450LPH for both return and returnless style systems
Description
Are you interested in an EFI retrofit kit, but just can't get past the complication of the fuel system? Holley is proud to introduce their Universal In-Tank Retrofit Fuel Modules! Available in return and returnless versions, you can rest assured Holley has the solution you need for your EFI fuel pump woes.
