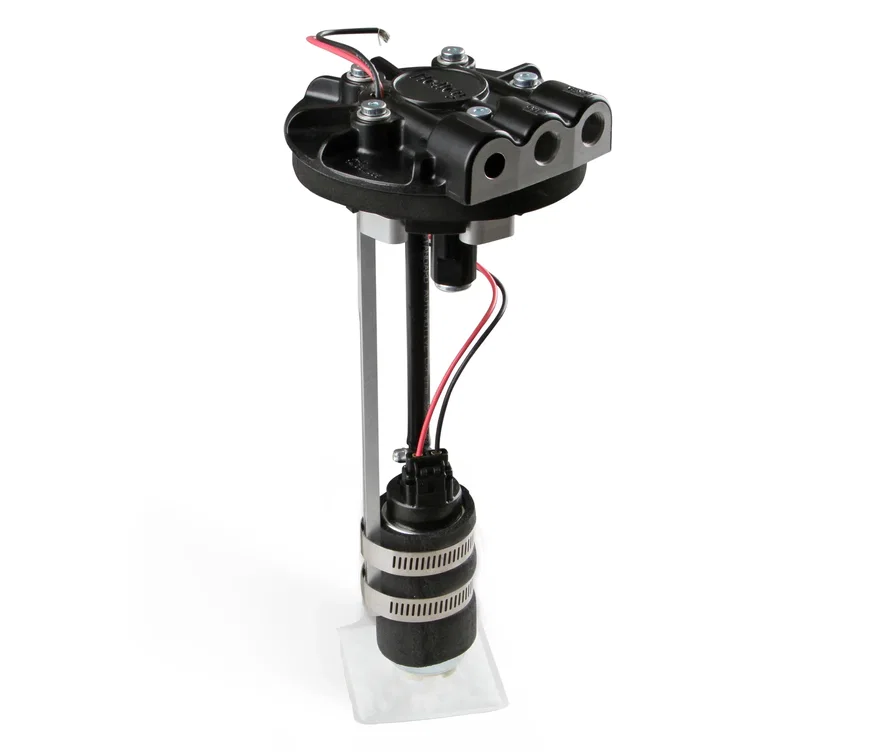

Holley Diecast In-Tank Carbureted RetroFit Fuel Pump Module-Returnless System
Part # 12-129SKU HOL12-129
Universal fit
| Brand | Holley |
|---|---|
| Part type | Fuel Pump Module Assembly |
| Application | Universal |
| Average Current Draw | 10.4 A |
| Average Flow Rating | 255 L/h |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Connector Color | Black |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Diameter | 4.8" |
| Emission Code | 5 |
| Free Flow GPH | 67 |
| Free Flow LPH | 255 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel System Type | Gasoline |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Foam |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Fitting Thread Size | 1/4 in |
| Inlet Quantity | One |
| Inlet Type | NPT |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Material | Die Cast Aluminum |
| Maximum Pressure | 6 PSI |
| UPC / GTIN | 00090127061282 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
- The easiest way to convert your vehicle to an in-tank fuel system
- Installs in any fuel tank from 6.5” to 12” deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
Description
The Holley "red and blue" electric fuel pumps have been the performance standard for decades. They continue to perform well, however, the evolution of fuel pump technology has surpassed them in quiet operation and fuel delivery capabilities that an in-tank module can deliver.
