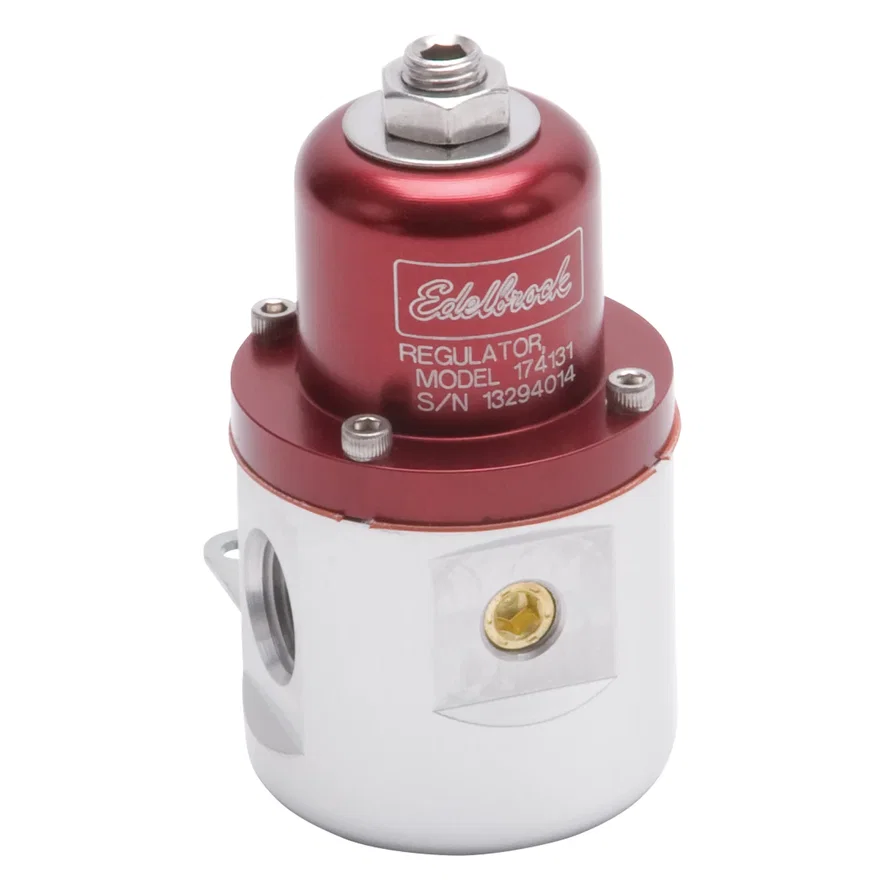

Edelbrock Carbureted Adjustable Bypass Fuel Pressure Regulator (160 GPH) in Red Finish

Part # 174131SKU EDE174131

Universal fit

Specifications
BrandEdelbrock
Part typeFuel Pressure Regulator
Inlet Port Diameter0.375 in
Inlet TypeThreaded
Mounting TypeBracket
Outlet Port Diameter0.375 in
Outlet TypeThreaded
Port Quantity4
UPC / GTIN00087133932415

Description

This Edelbrock fuel pressure regulator #174131 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174131 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps.
