Part # 300004ERLSKU EAR300004ERL
Universal fit
| Brand | Earl's Performance |
|---|---|
| Part type | Fuel Hose |
| Brand | Earl's |
| Category | Air and Fuel Delivery |
| Compatible Hose Ends | Econ-O-Fit |
| Emission Code | 5 |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 2 out of 5 Rating |
| Fluid Type Rating - E85 | 2 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 1 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 2 out of 5 Rating |
| Fluid Type Rating - Race Gas | 3 out of 5 Rating |
| Fluid Type Rating - Vacuum | 5 out of 5 Rating |
| Hose Family | Auto-Flex |
| Hose Length | BULK |
| Hose Outer Material | Stainless Steel |
| Hose Size | 4 AN |
| I.D. to O.D. Concentricity Range | .020" |
| Inside Diameter | .204" TO .244" |
| Max Vacuum | 27 in Hg |
| Max Working Pressure | 1500 PSI |
| Max Working PSI | 1500 PSI |
| Maximum Continuous Length | 50 Feet |
| Min. Bend Radius | 2" |
| Outside Diameter | .418" TO .461" |
| part type | Fuel Hose |
| Product Type | Hose |
| Sub Category | Fuel Storage |
| Submersible in Fuel | No |
| UPC / GTIN | 00021432480024 |
| Warranty | Manufacturer’s Limited 90 Day Warranty |

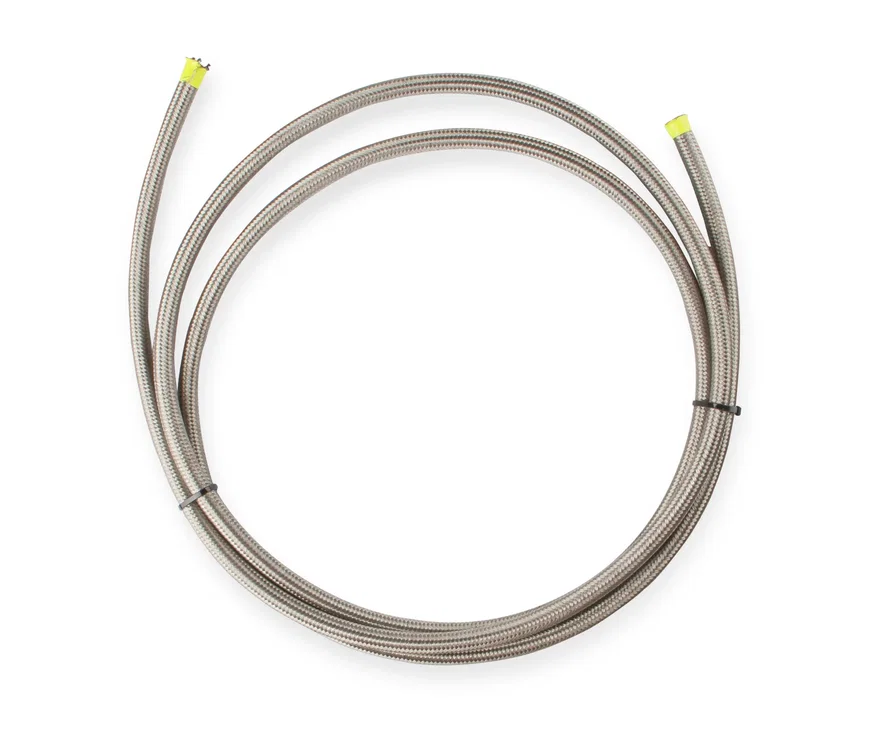

A high-quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is embedded in the liner during manufacture. The hose is finished with a full-coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E (not to be confused with PTFE) and it is the highest-quality synthetic neoprene liner on the market. The continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit, and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers' hose ends is also not recommended with this hose as it does not work with lower-quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.
